BM900S Insulator Silicone Sheet is a kind of silicone elastomer composite material, it's by insulating and good thermal conductivity filling material, silicone rubber and fiberglass compounded into. These products generally take the lower fastening pressure element fixed ways, the product has good thermal conductivity and high strength voltage resistance performance!

Advantages:
1.Strong tension resistance,

2.Wear resistance, excellent insulation performance,

3.Non adhesive on surface , thin thickness, suitable for thermal insulation of power devices.

Features:

◆Thermal resistance : 0.49︒C -in2/W (@ 50psi)

◆Low fastening pressure

◆Surface smooth and highly adapted
◆electrical insulation

Application:
◆Large power source and automobile electronic heating module
◆Motor control, communication equipment
◆Power semiconductor, IS MOS tube IGBT chip
◆High voltage , high temperature , high power welding machine etc.

◆Military, aviation
◆Heating power device

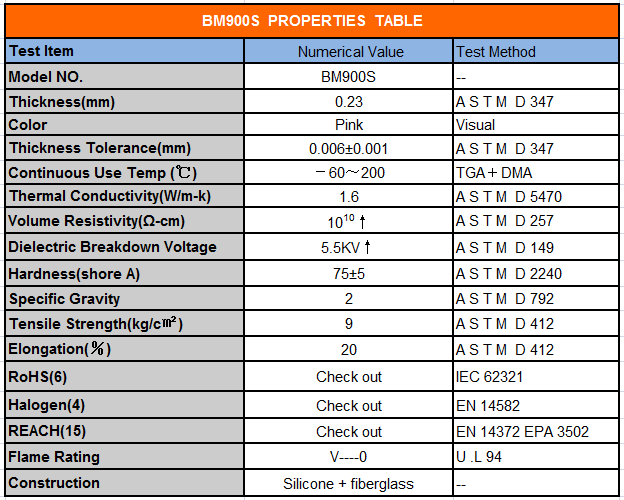

Specifications:
◆Sheet, die-cutting, roll, with adhesive and without adhesive

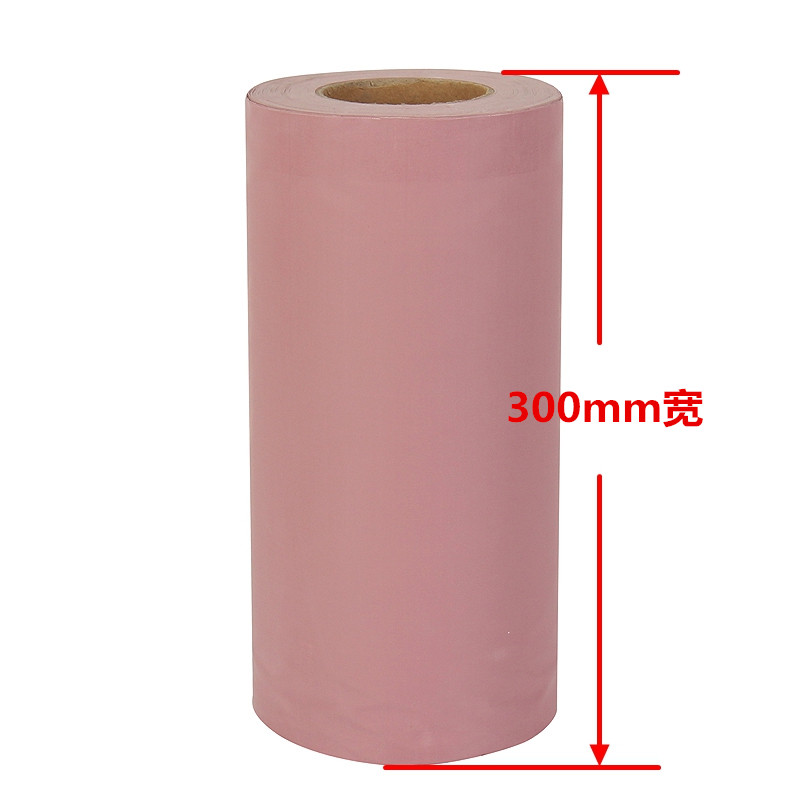

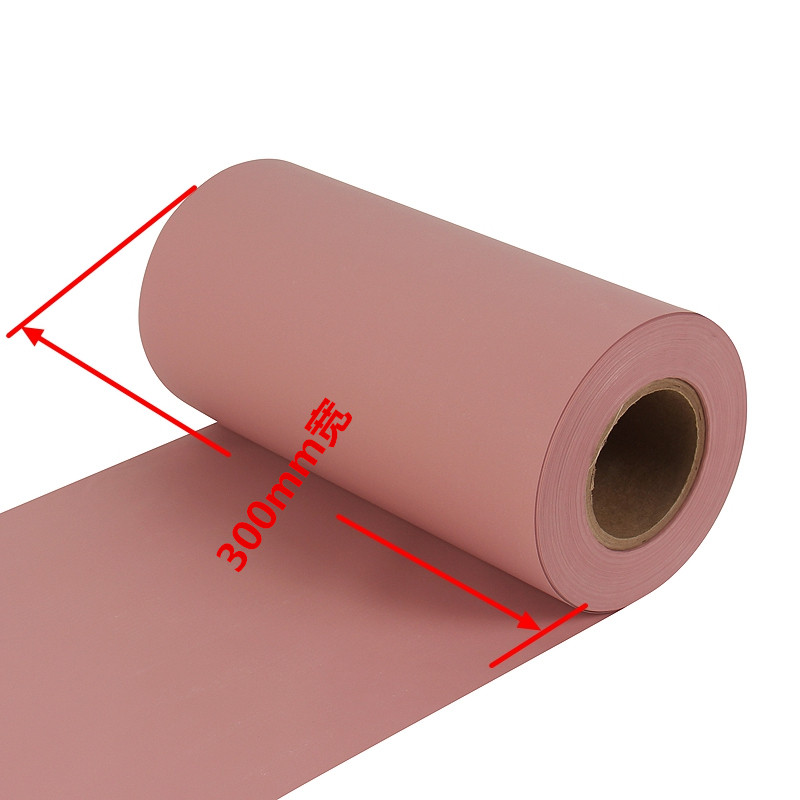

◆Basic size:0.23mm*300mm*50m , 0.23mm*300mm*76m
According to customer requirements can be processed into different sheet form also can adhesive.
