Product Name : PM500 Silicone Gap Pad
Applications:
1.Flat panel TV, mobile equipment, high-speed hard disk drive
2.Between semiconductor and radiating fin
3.Computer, PC server, workstation
4.LED lighting, lighting equipment
5.The chip and chip component
Performance and characteristics:
1.High thermal conductivity, heat transfer coefficient 5.2W/m-k
2.Stable performance , low thermal resistance, effectively improve the heat transfer speed
3.Low hardness, its viscosity high, easy to use adhesive
4.By UL and V-O certification standards
Specification:

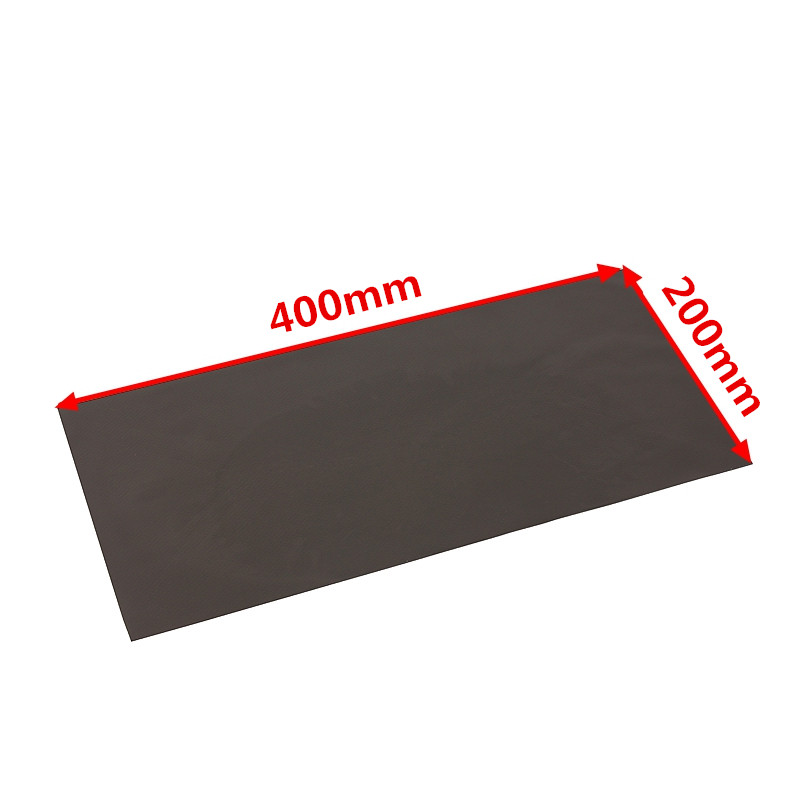

Product standard size 310mm*310mm, 200mm*400mm according to customer needs cutting type
Basic thickness 0.25mm*5.0mm, special size and thickness can be customized
This series product has slightly viscous, if need to strengthen the adhesion can be according to customer’ requirement.
Product color is mass production, if need special color can be adjusted according to the actual situation .
